Gate Array MPEG rev 2 CDI605/17 internal DVC
Below is a collection of pictures from the following item:
| Type | 22ER9141/00 |
|---|
| 12NC | 9022 729 14101 |
|---|
| Prod. | AH01 9348 520120 |
|---|
| Board | Gate Array MPEG rev 2 |
|---|

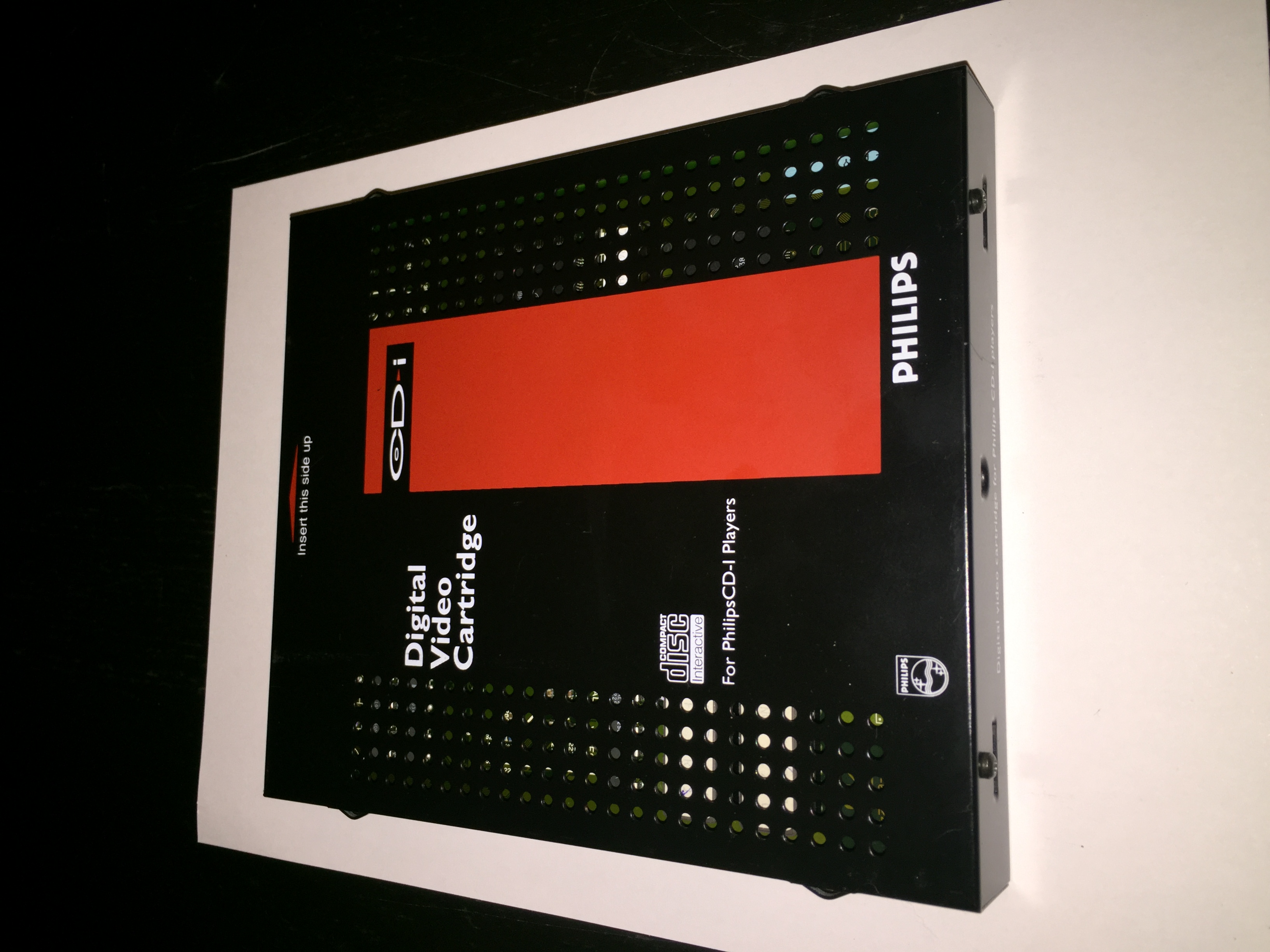

Frontside with logos

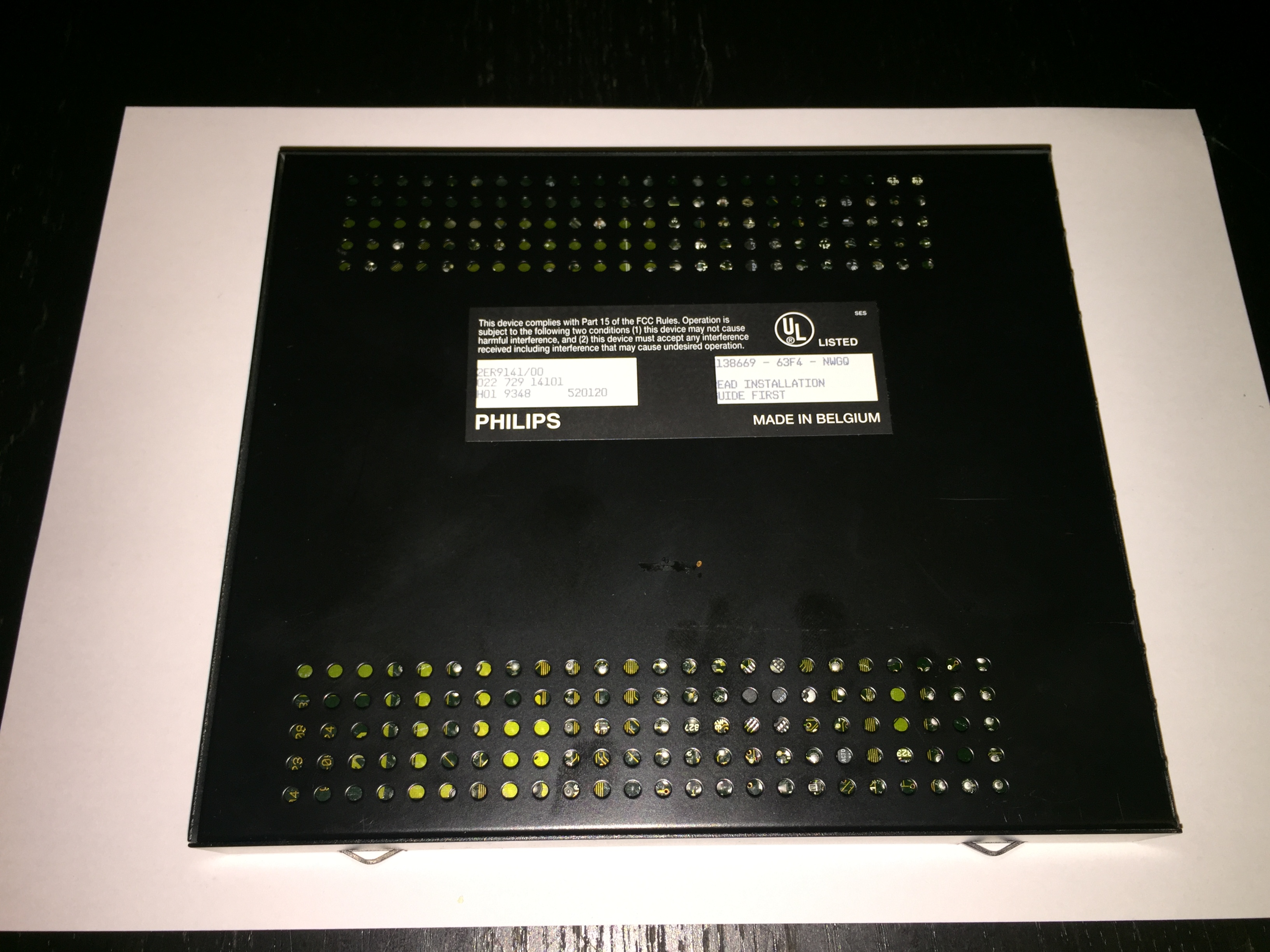

Backside with information sticker

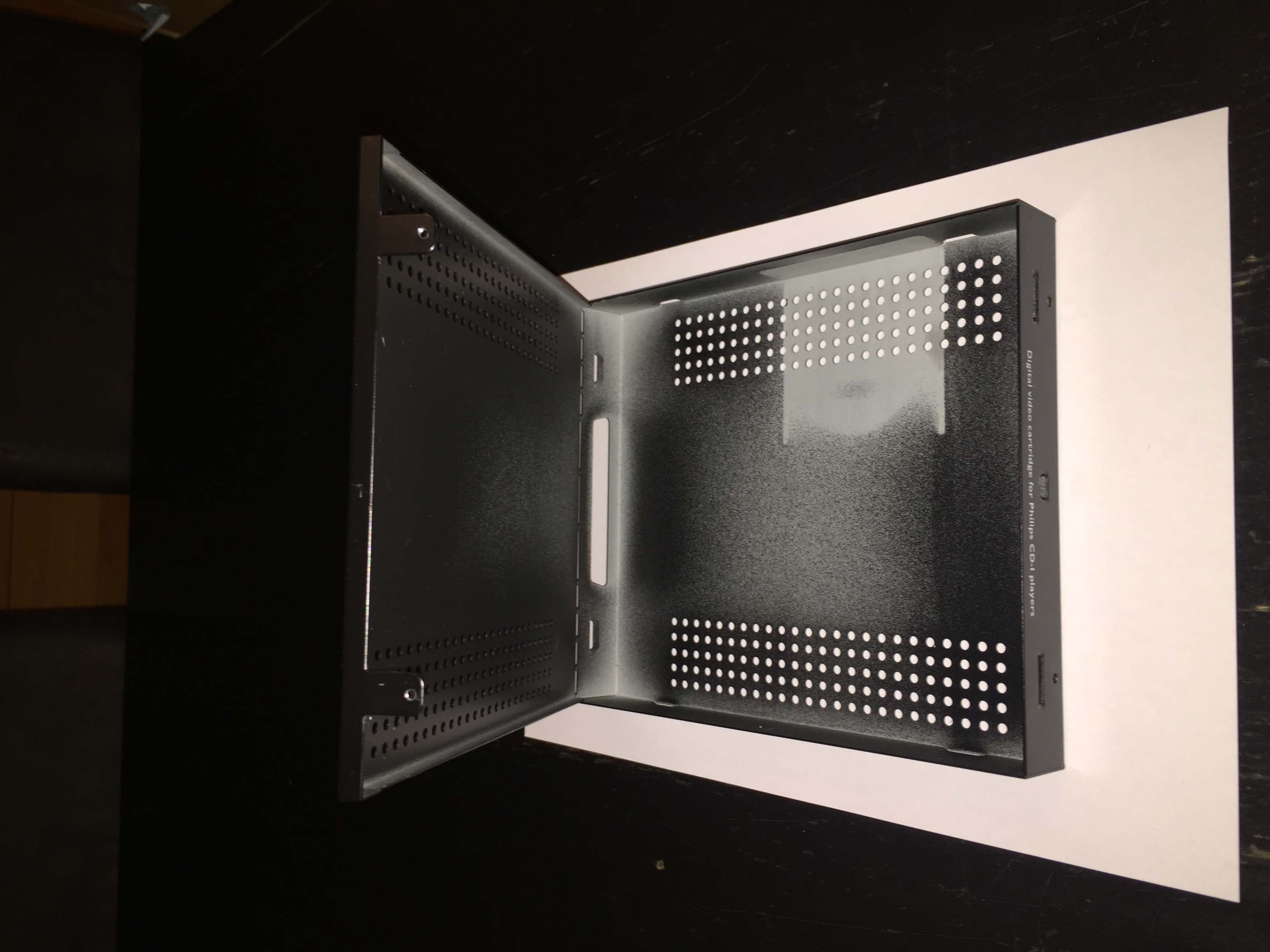

Opened case with board removed

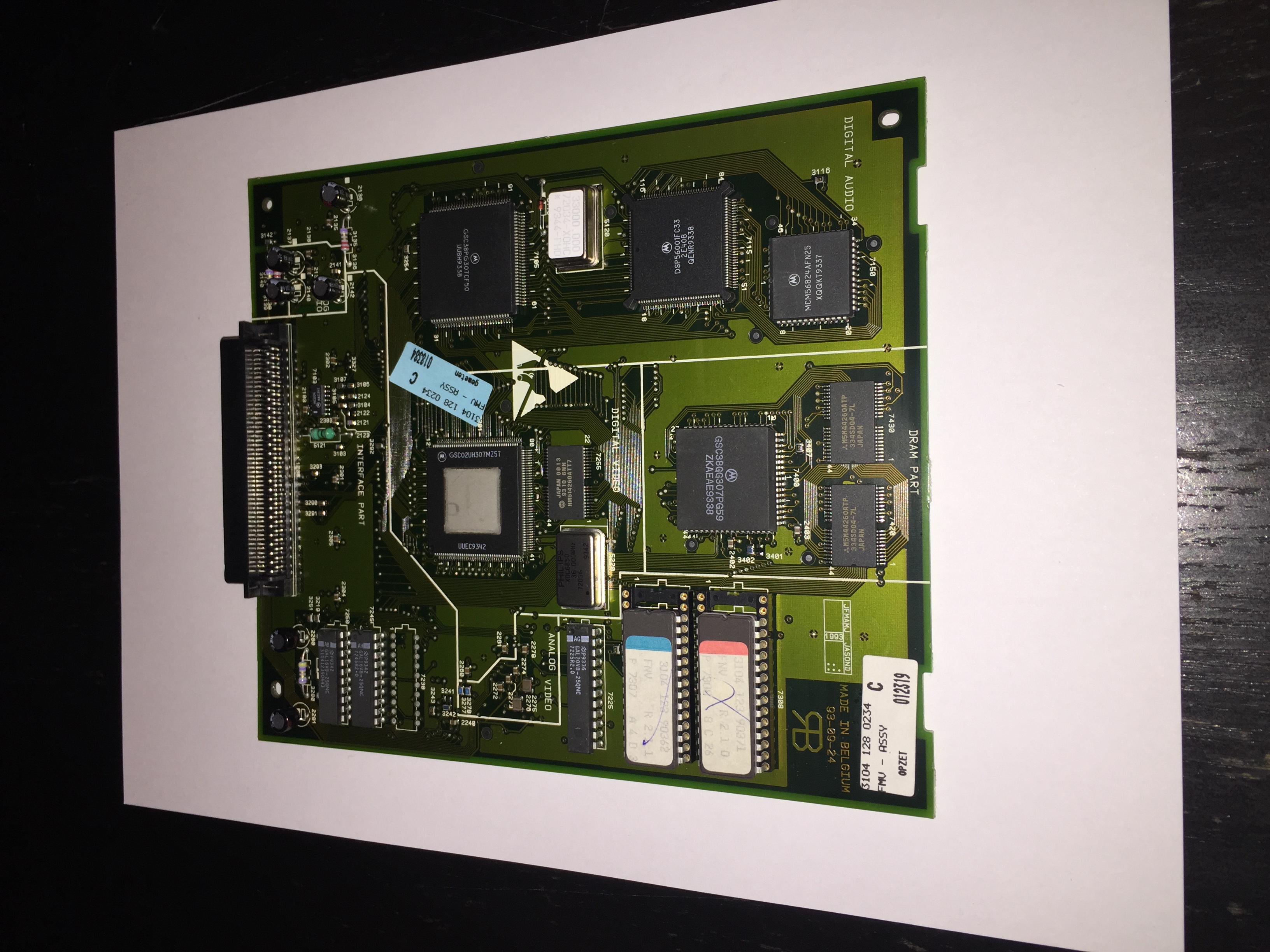

Component side of board

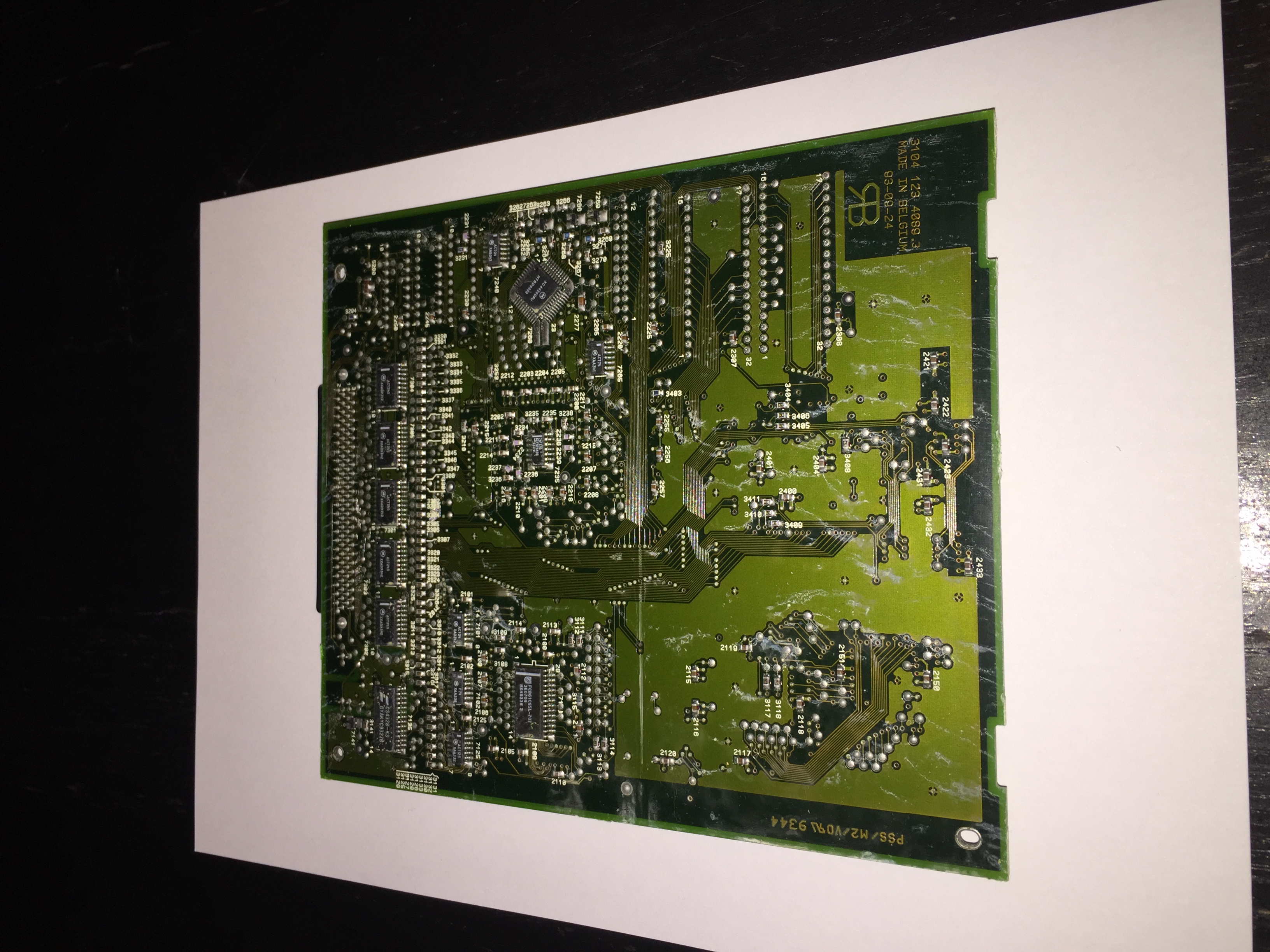

Back side of board
